Description
High-performance with state-of-the-art technology

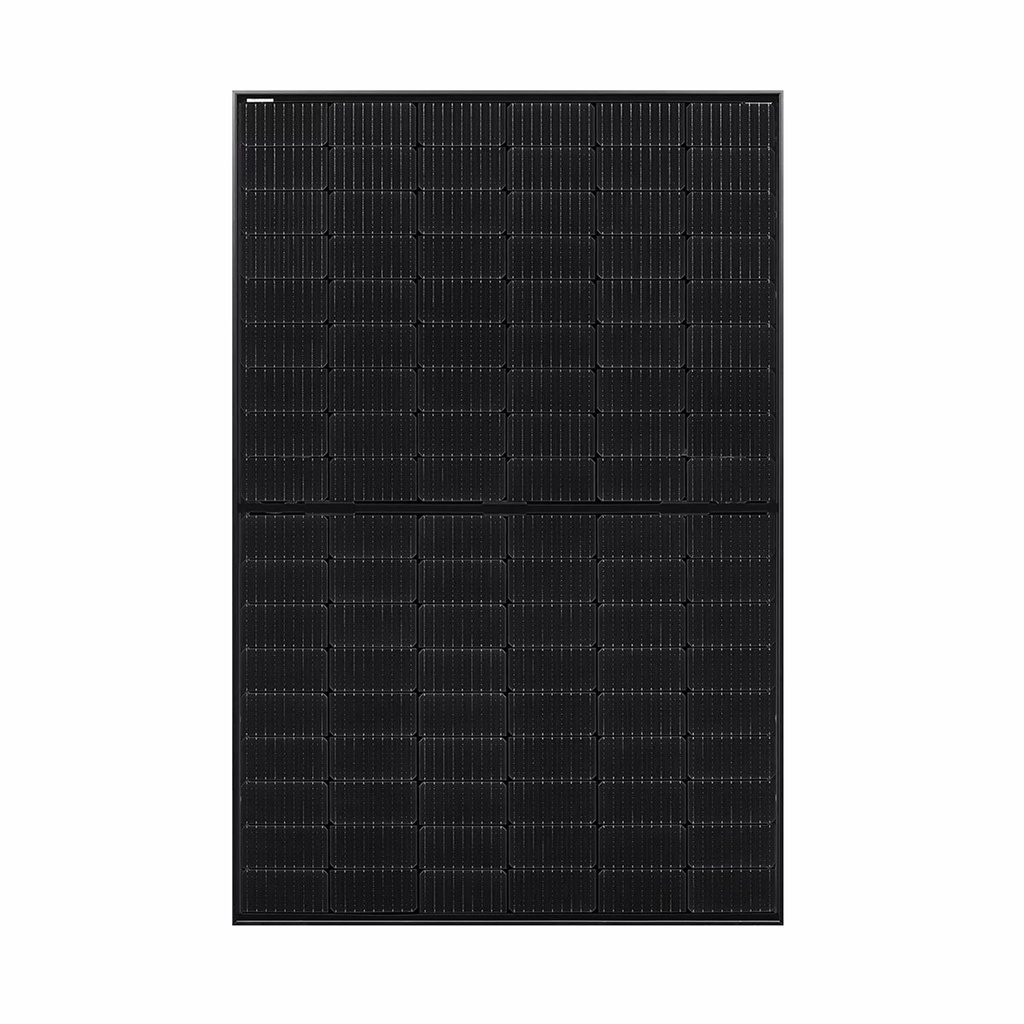

The Bauer Solar BS-455-108M10HBB Glass-Glass Black module is an elegant and high-performance solution with 455 W of power, designed for attractive, modern PV systems. Thanks to the bifacial N-type TOPCon half-cells – which are active on both sides – and a transparent backsheet, it delivers up to 30% higher yield.
Robust construction guarantees high durability
The robust double-glass construction with tempered anti-reflective glass withstands heavy loads and minimises the risk of micro-cracks, ensuring a long service life.
30-year product and performance warranty
Bauer Solar provides a 30-year product and performance warranty on its glass-glass modules. The modules are certified by the Swiss SUPSI PVLAb with hail resistance class HW3 and can withstand extreme weather events. Added to this are reduced power degradation, efficient yields and a fire class A rating, allowing for a higher module density on the roof.
Specifications
| Master data | |
|---|---|
| Manufacturer / Brand | Bauer Solar |
| Subcategory name | Bauer Solar |
| Performance Guarantee | 30 years |
| Product warranty | 30 years |
| Reinsurance text | Leistungsgarantie abgesichert durch Munich-RE |
| Reinsurance | Yes |
| Technical data | |
|---|---|
| Solar panel specifications | Full Black, With connecting cable, With frame |
| Technology | Bifacial, Mono, N-type cells |
| Compliance with guidelines | Fire resistance class A, IEC 61215, IEC 61730 |
| Module power | 450 Wp |
| Module efficiency (STC) | 22.5 % |
| Temperature coefficient Pmpp | -0.29 %/°C |
| Cells | Half-cell |
| Module layout (rear view) | Glass-to-glass |
| Colour of the back | Black |
| Frame colour | Black |
| Number of bypass diodes | 3 pcs |
| Operating temperature | –40 … +85 °C |
| Cell material | Monocrystalline |
| Logistics data | |
|---|---|
| Width | 1134 mm |
| Height | 1762 mm |
| Net weight | 24.5 kg |
| Depth | 30 mm |
