Description
High-performance back-contact modules

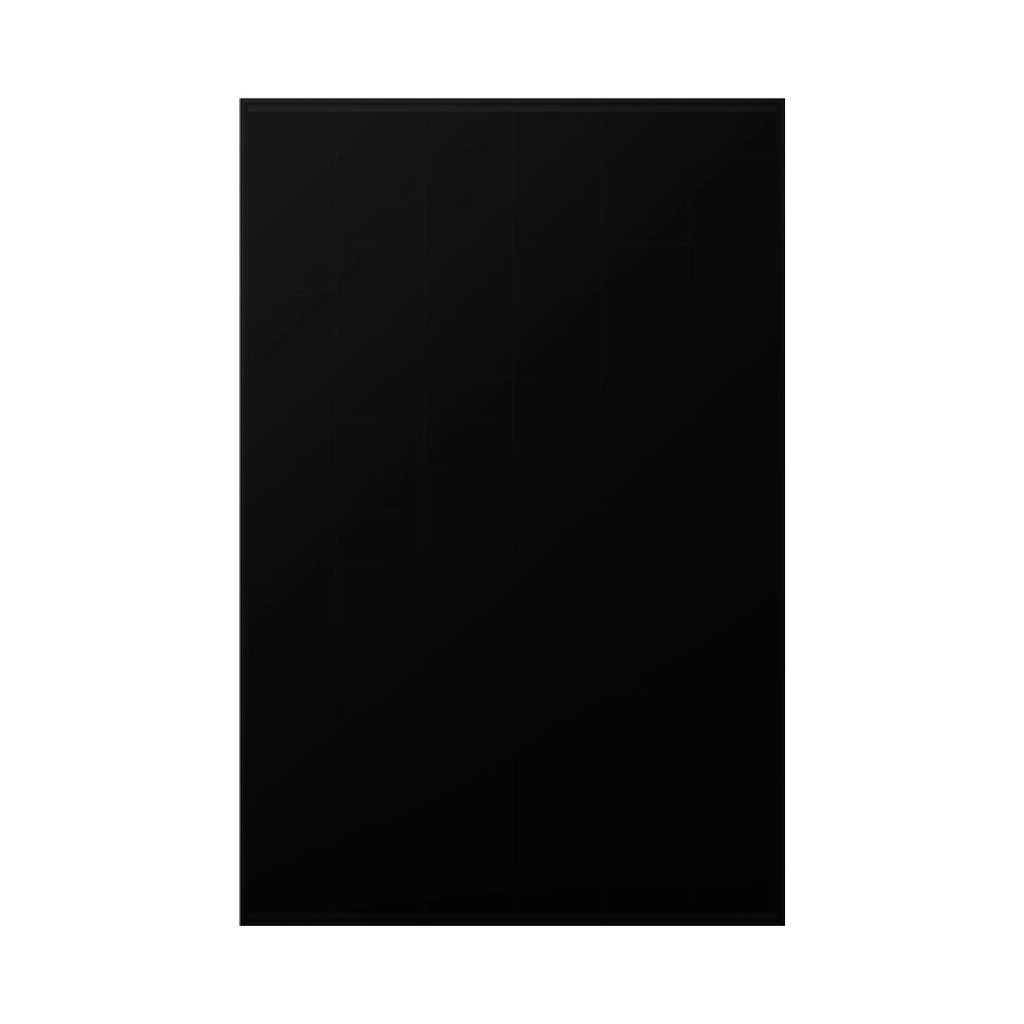

The Bauer Solar BS-485-108M10BCBB-GG glass-glass black back-contact solar module impresses with an output of 485 WP and an elegant all-black design for attractive, modern PV systems. Thanks to the double-sided active half-cells with back-contact technology, light absorption is maximised, whilst anti-shading technology minimises power losses even in the event of partial shading.
Robust construction guarantees a long service life
The robust double-glass construction with tempered anti-reflective glass withstands heavy loads and minimises the risk of micro-cracks, ensuring a long service life.
30-year product and performance warranty
Bauer Solar provides a 30-year product and performance warranty on its glass-glass modules, ensuring maximum security and long-term reliability.
Specifications
| Master data | |
|---|---|
| Manufacturer / Brand | Bauer Solar |
| Subcategory name | Bauer Solar |
| Performance Guarantee | 30 years |
| Product warranty | 30 years |
| Reinsurance text | ohne Rückversicherung |
| Reinsurance | No |
| Technical data | |
|---|---|
| Solar panel specifications | Full Black, With connecting cable, With frame |
| Technology | Back-contact, Bifacial, Mono |
| Compliance with guidelines | Fire resistance class A, IEC 61215, IEC 61701, IEC 61730, IEC 62716 |
| Module power | 485 Wp |
| Cells | Half-cell |
| Module layout (rear view) | Glass-to-glass |
| Colour of the back | Black |
| Cell colour | Black |
| Frame colour | Black |
| Number of bypass diodes | 3 pcs |
| Operating temperature | –40 … +85 °C |
| Cell material | Monocrystalline |
| Logistics data | |
|---|---|
| Width | 1134 mm |
| Height | 1800 mm |
| Net weight | 24.8 kg |
| Depth | 30 mm |
