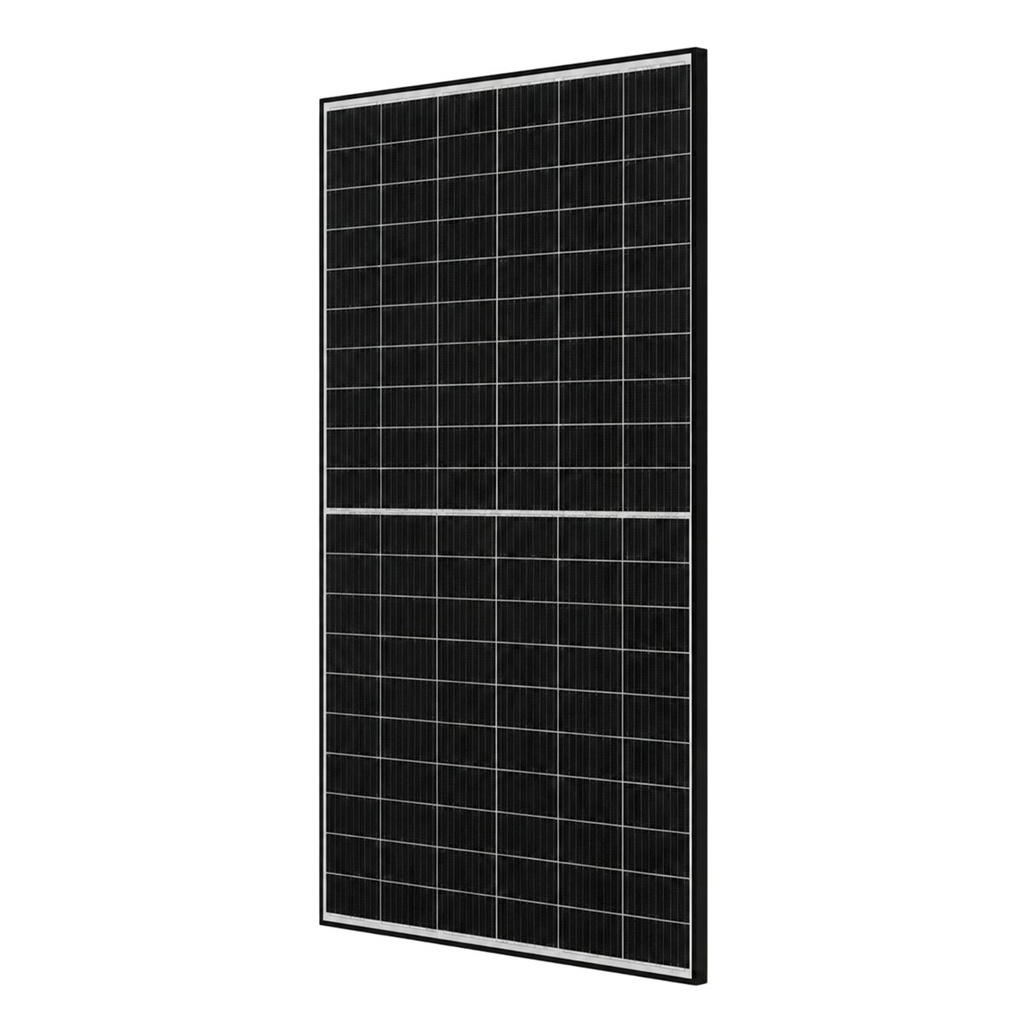

JA Solar JAM60D42 540/LB Glass-Glass

JA Solar JAM60D42 LB – High-performance module with N-type glass-on-glass technology

The JA Solar JAM60D42 LB combines state-of-the-art N-type Bycium+ cell technology with a durable glass-on-glass design. With a module power output of up to 540 watts and a module efficiency of 23.1 per cent, it delivers excellent energy yield on limited roof space.

Thanks to its bifacial design, reflected light on the rear of the module can also be utilised. Depending on the mounting method and surface, this can result in significant additional yields. The module is ideal for rooftop, ground-mounted, carport and commercial installations.

Product benefits

• Up to 540 W module power
• Efficiency of up to 23.1%
• N-type Bycium+ half-cell technology
• Bifacial glass-glass module for additional energy yields
• Very low power degradation
• Excellent low-light performance
• Low temperature coefficient for high yields even in hot conditions
• High mechanical strength: up to 5,400 Pa snow load and 2,400 Pa wind load
• IP68 -rated junction box
• 1,500 V system voltage for modern PV installations
• Ideal for residential, commercial and industrial applications.

Technical highlights

• Module power: 515–540 W
• Module efficiency: 22.0–23.1 %
• Cell type: N-type mono, MBB half-cell
• Glass-glass design (2.0 mm / 2.0 mm)
• 120 half-cells (6 × 20)
• Module dimensions: 2063 × 1134 × 30 mm
• Weight: 28.8 kg
• MC4-EVO2 or QC 4.10-351 compatible connectors
• Operating temperature: -40 °C to +85 °C.
